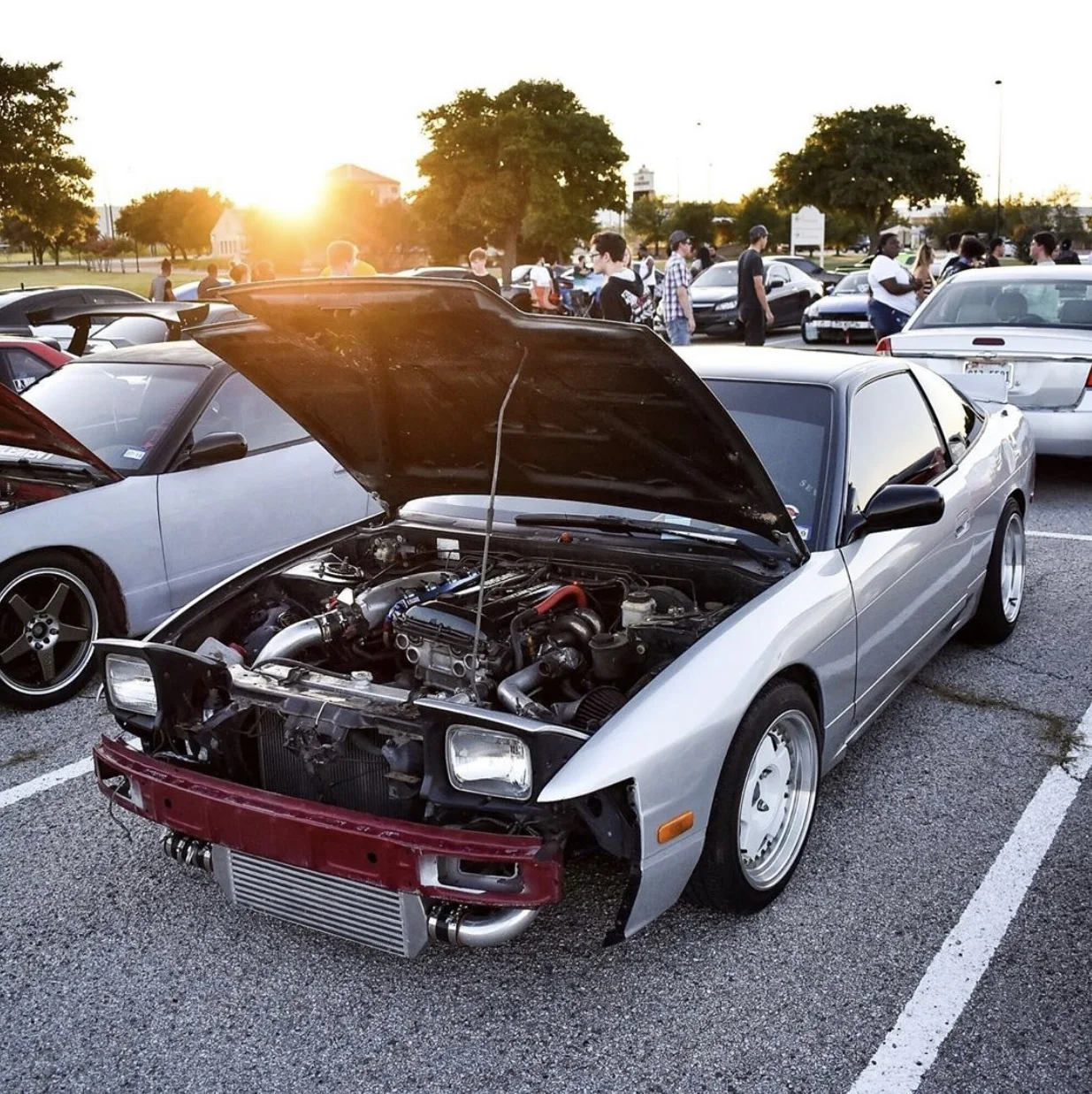

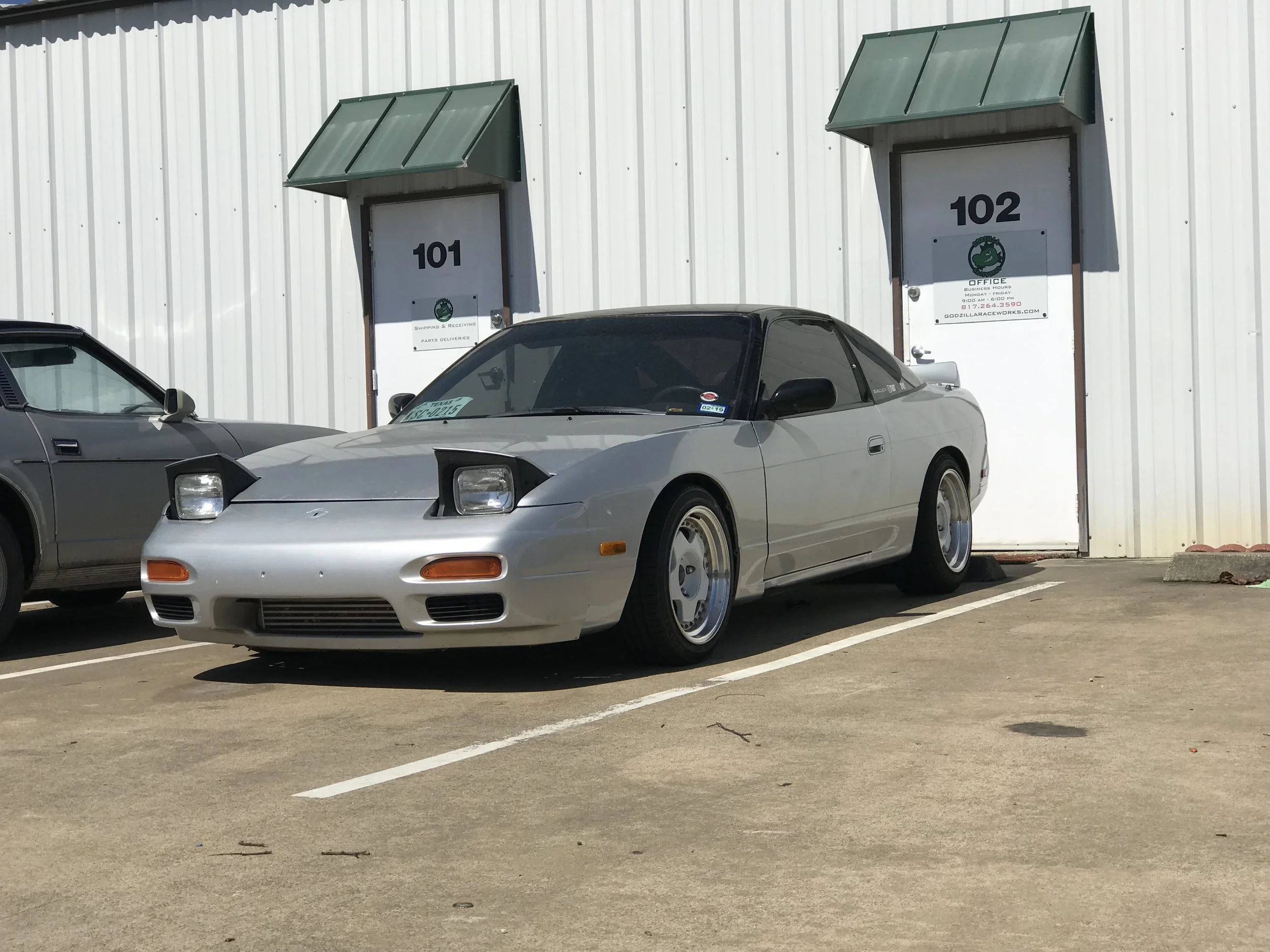

Jared's 90' 240sx Hatch

Credit : @taylored.media

Credit : @taylored.media

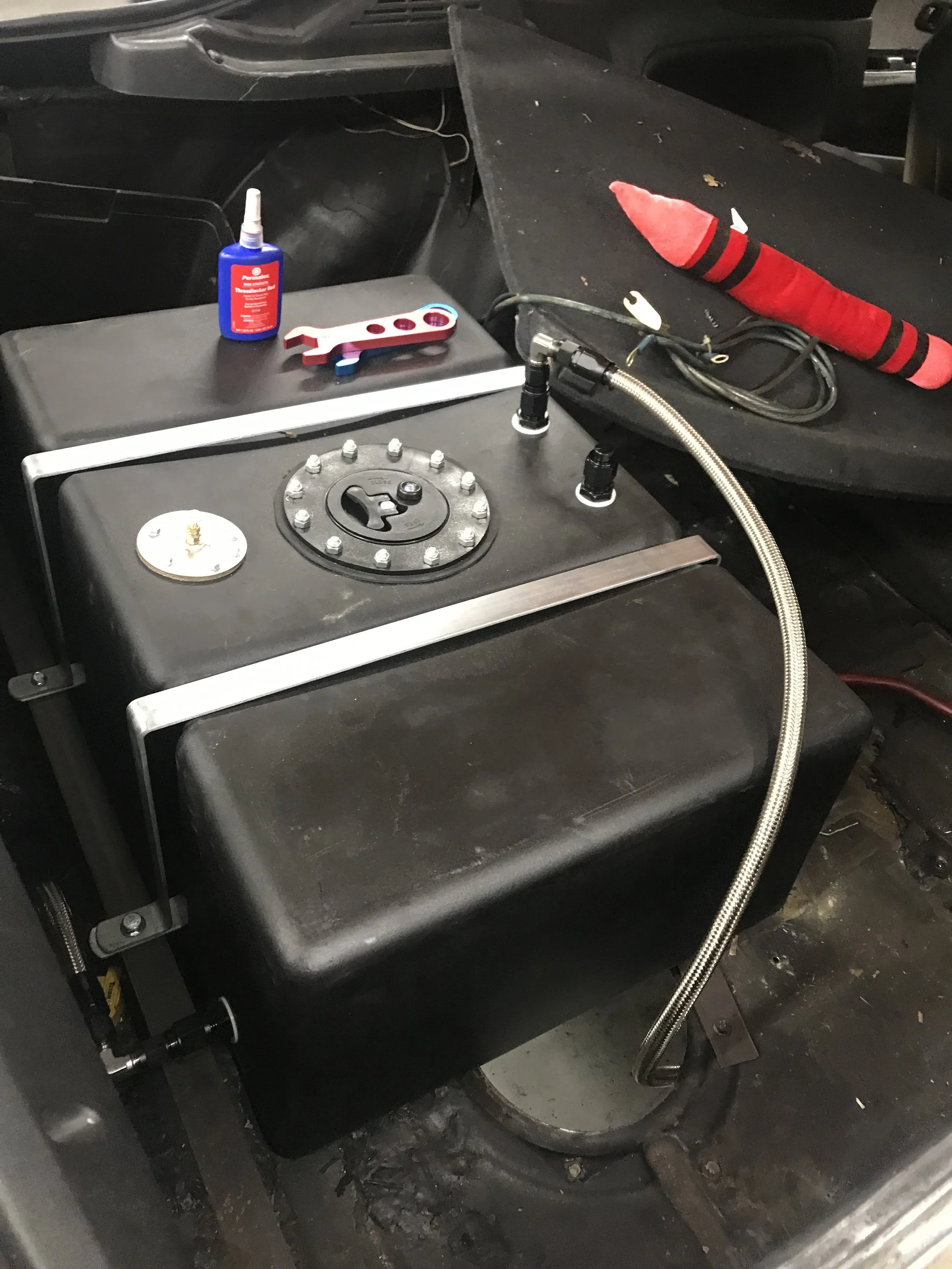

Jared came to us with the vision of a street-able drift car. Originally a KA24DE car, he swapped in a red top SR20 engine in his garage and wired it up. After driving it around for a few months, he decided he wanted to make this car a capable street driving car, but with some drift racing elements to give it a true dual purpose. He stripped out the rear seats and rear hatch interior, along with the factory fuel tank and fuel lines. He found a 16 gallon fuel-cell from JEGS, and dropped it in the rear hatch area with some mounting brackets. With some other JDM SR20 bolt-on goodies in tow, he loaded up his S13 hatch onto a U-haul trailer, and brought it straight to us.

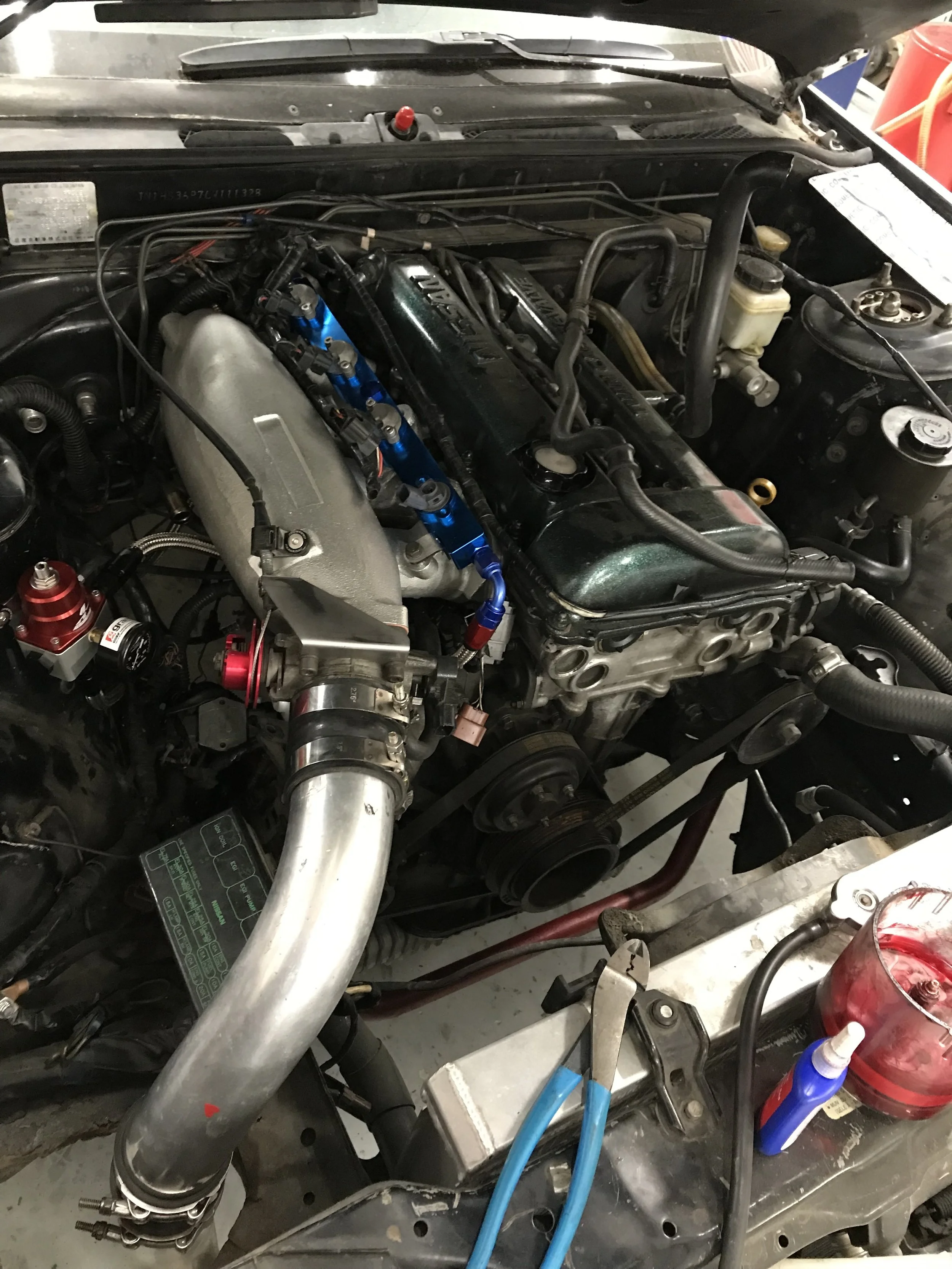

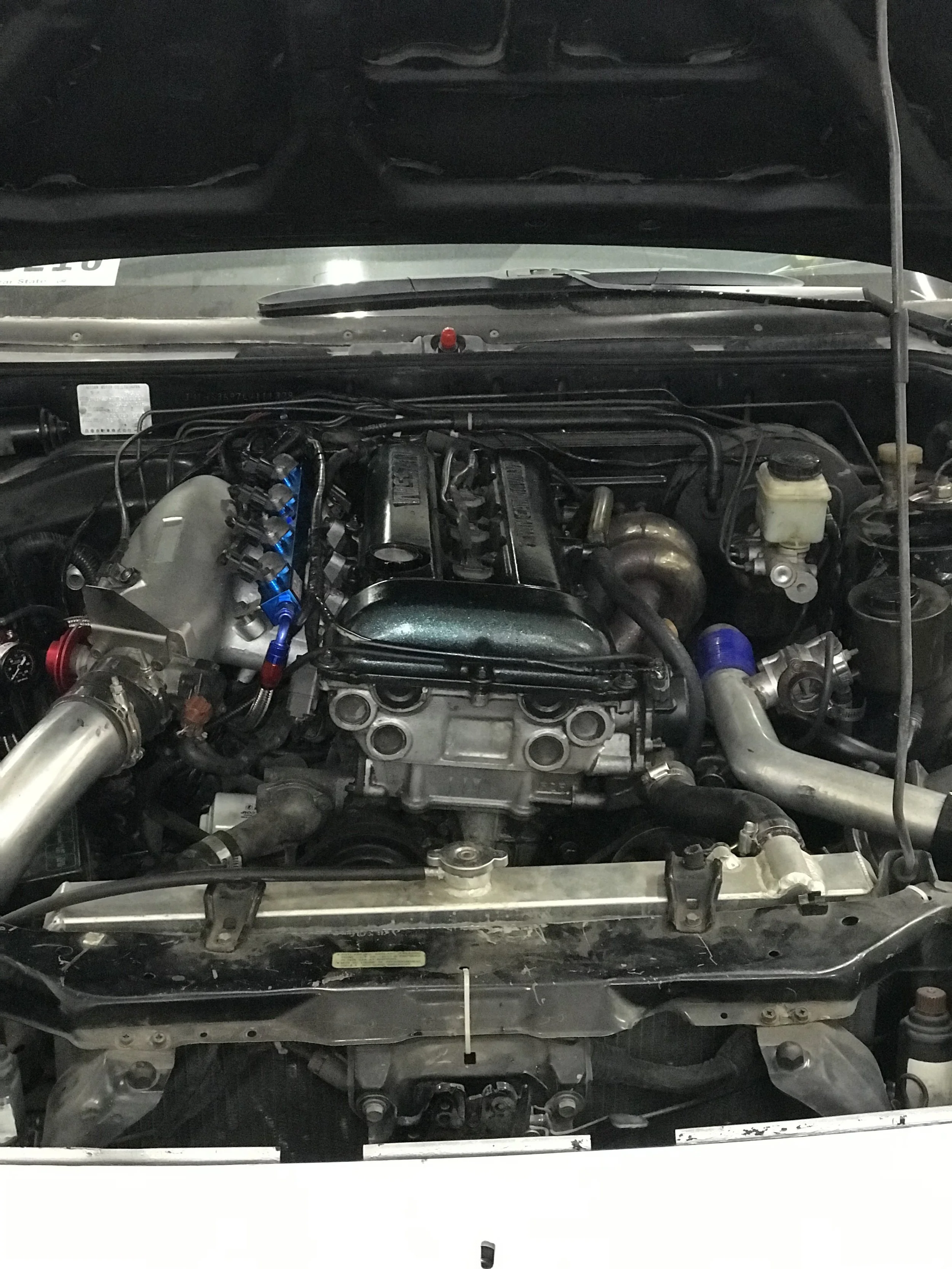

He decided on a complete -6an stainless steel fuel system with an external Walbro 255 LPH fuel pump. While we had it here, we went ahead and installed a Trust baffled oil pan, a Greddy Type high flow intake manifold, Aeromotive fuel pressure regulator, billet aluminum fuel rail, Tomei tubular turbo header, and Apexi T25 turbo. We also fabricated some -6an coolant lines from the engine block to the turbo to keep the center section cool during extended drifting runs.

After a few drifting runs on the new setup, this S13 has proven to be a regular contender in the local drifting scene, and the street car community.


  • S13 Red Top SR20DET Swap

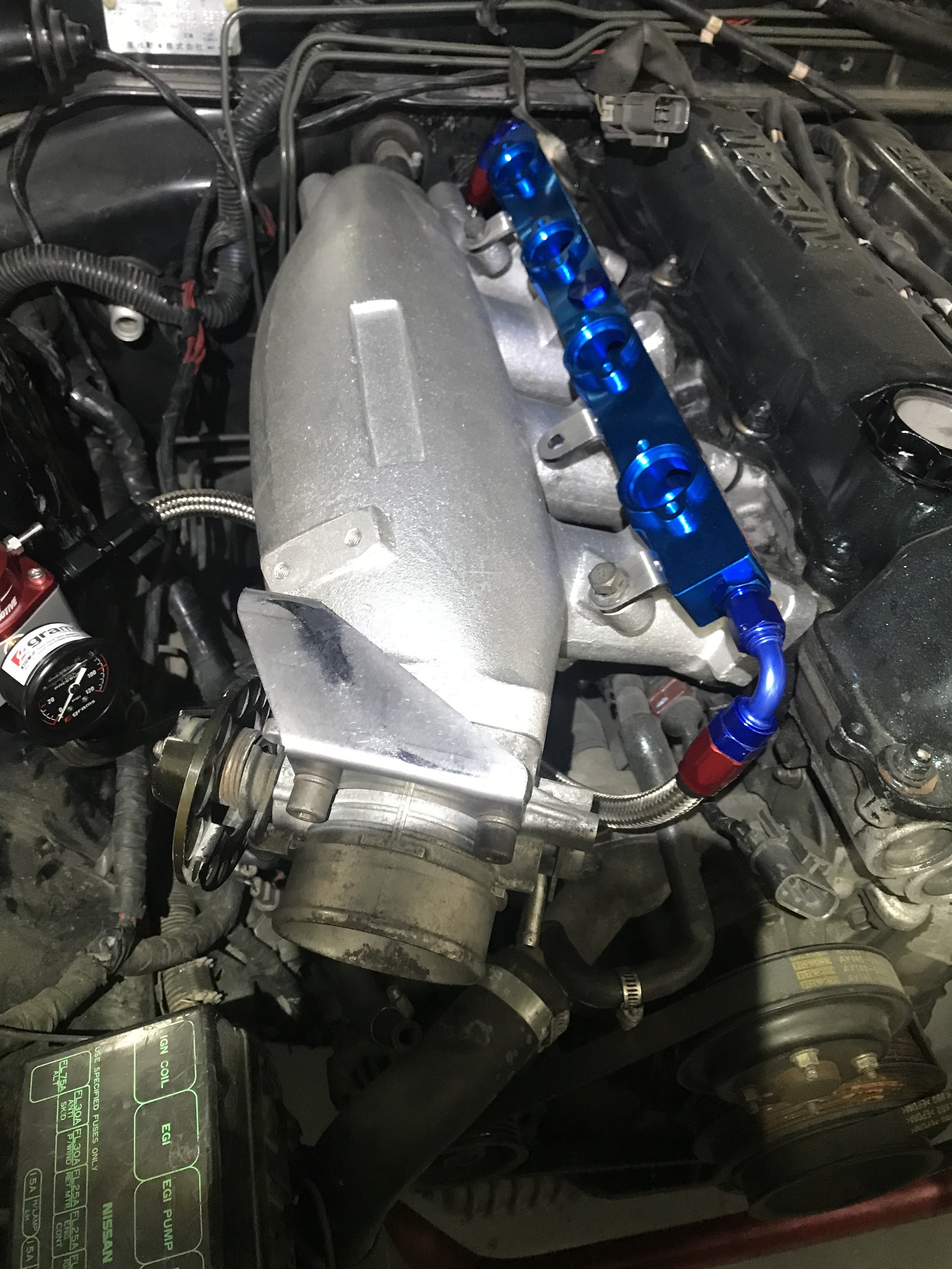

  • Greddy Style High Flow Intake Manifold

  • Billet Aluminum Throttle Body Pulley

  • Apexi Conical Intake Filter

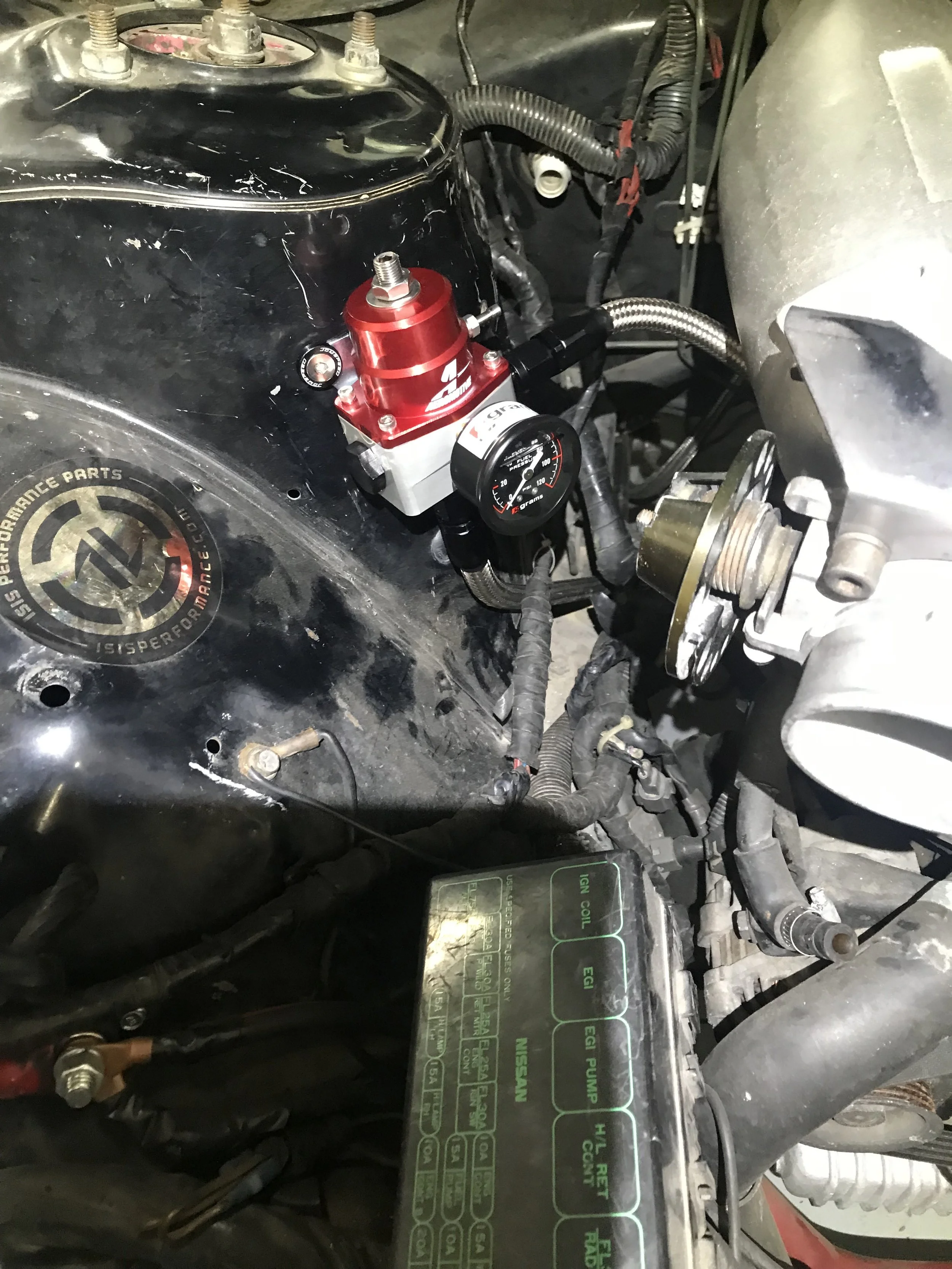

  • Aeromotive Fuel Pressure Regulator w/ Grams Fuel Pressure Gauge

  • Circuit Sports Billet Aluminum Fuel Rail

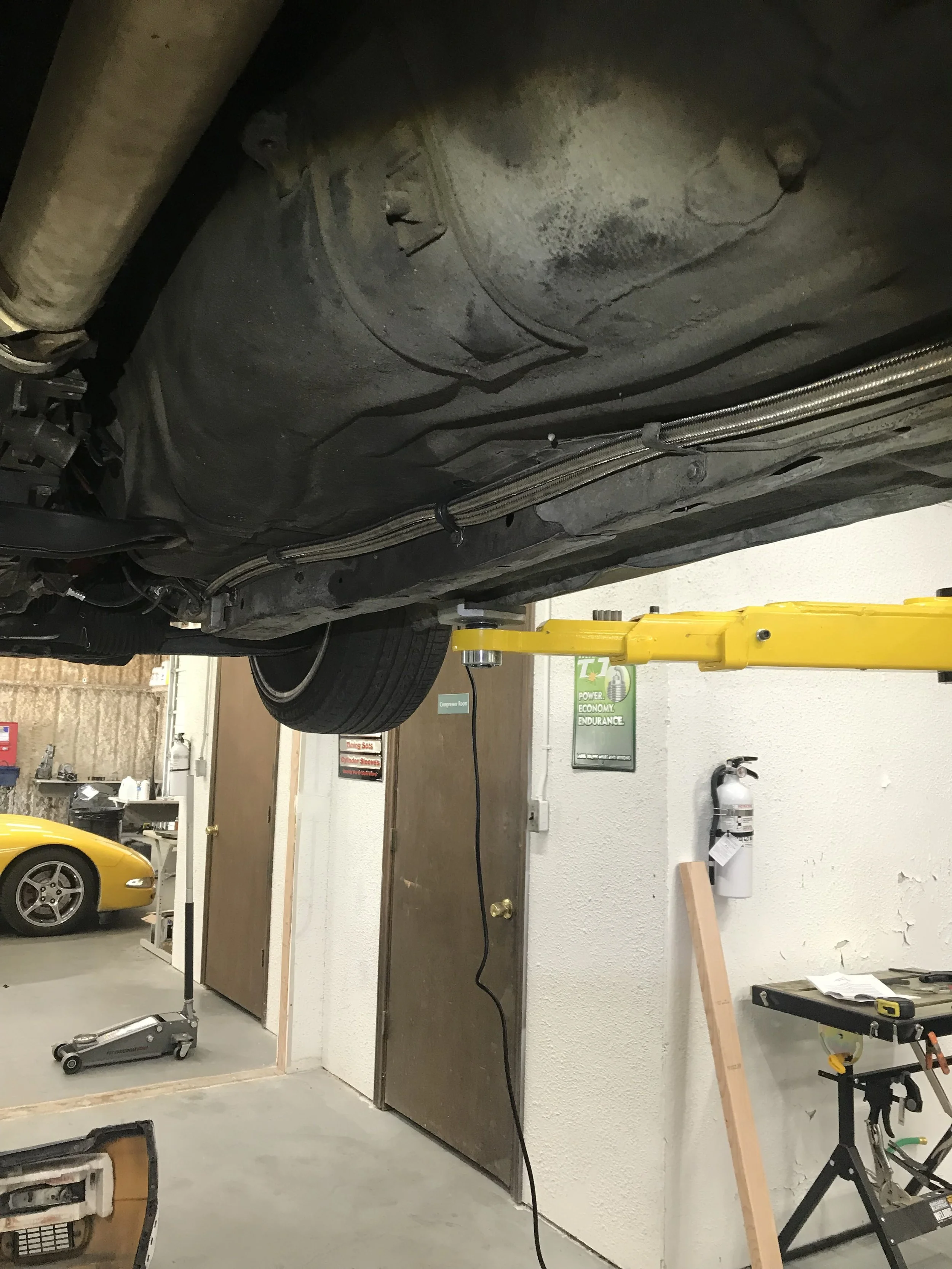

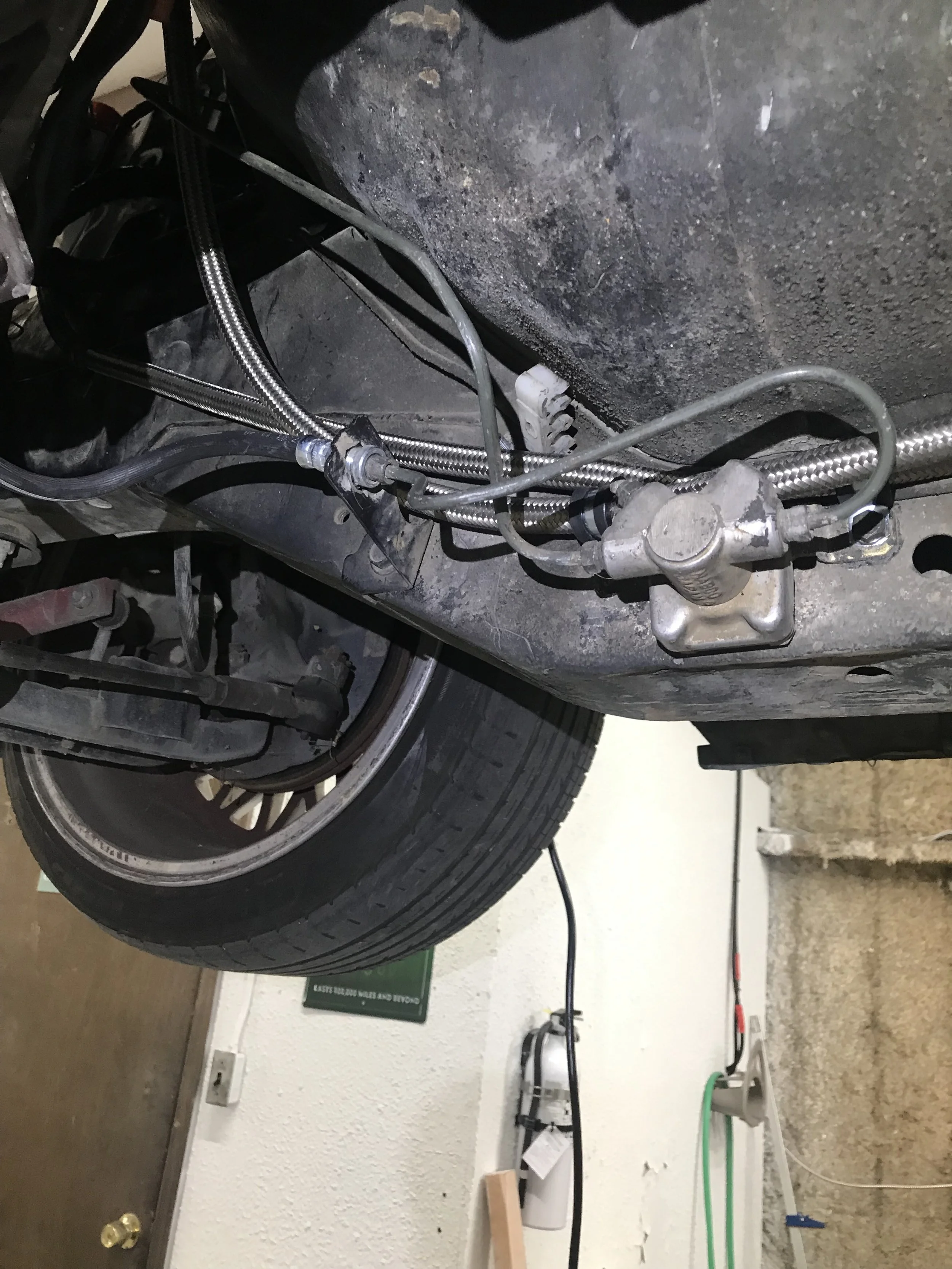

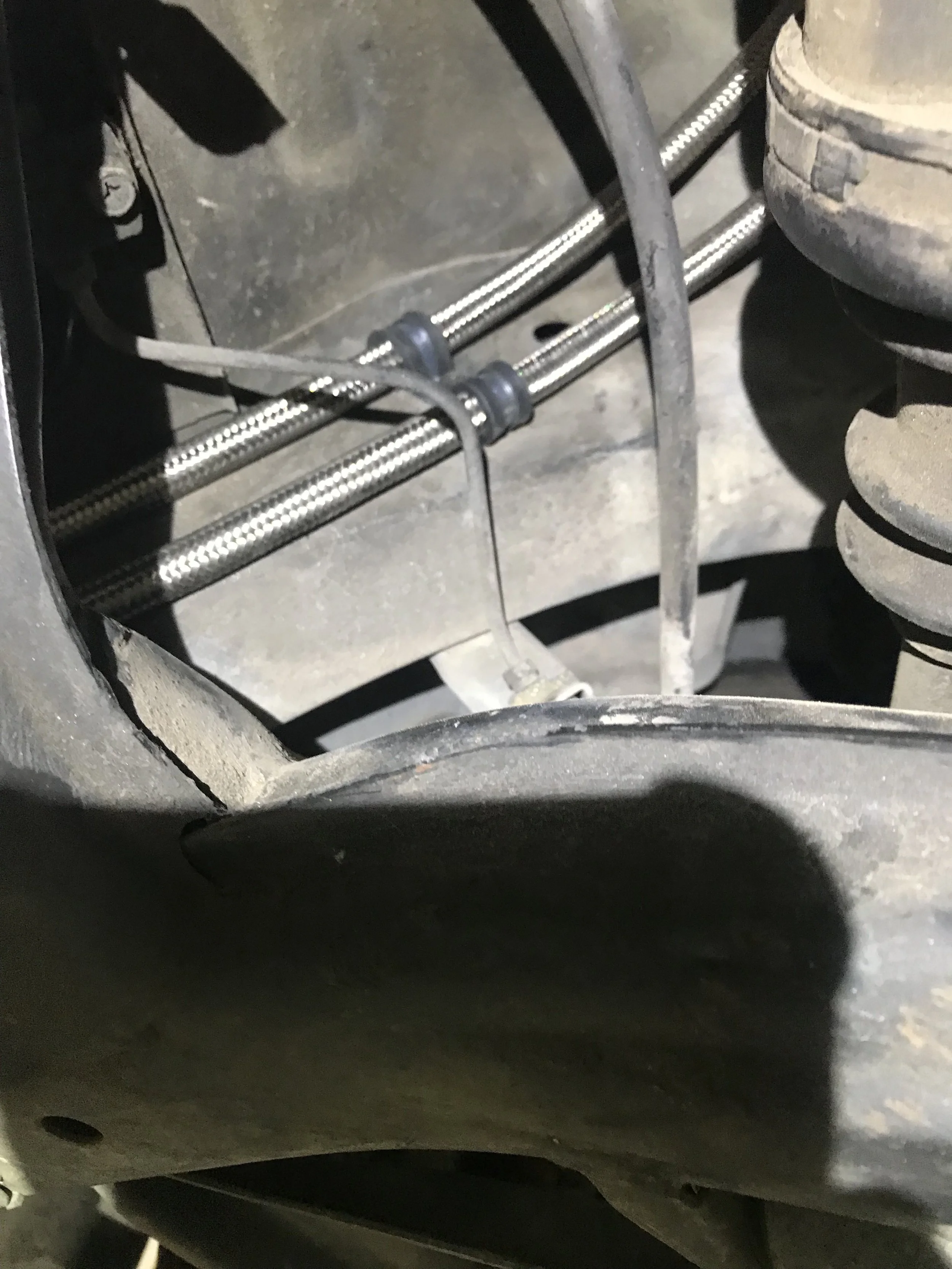

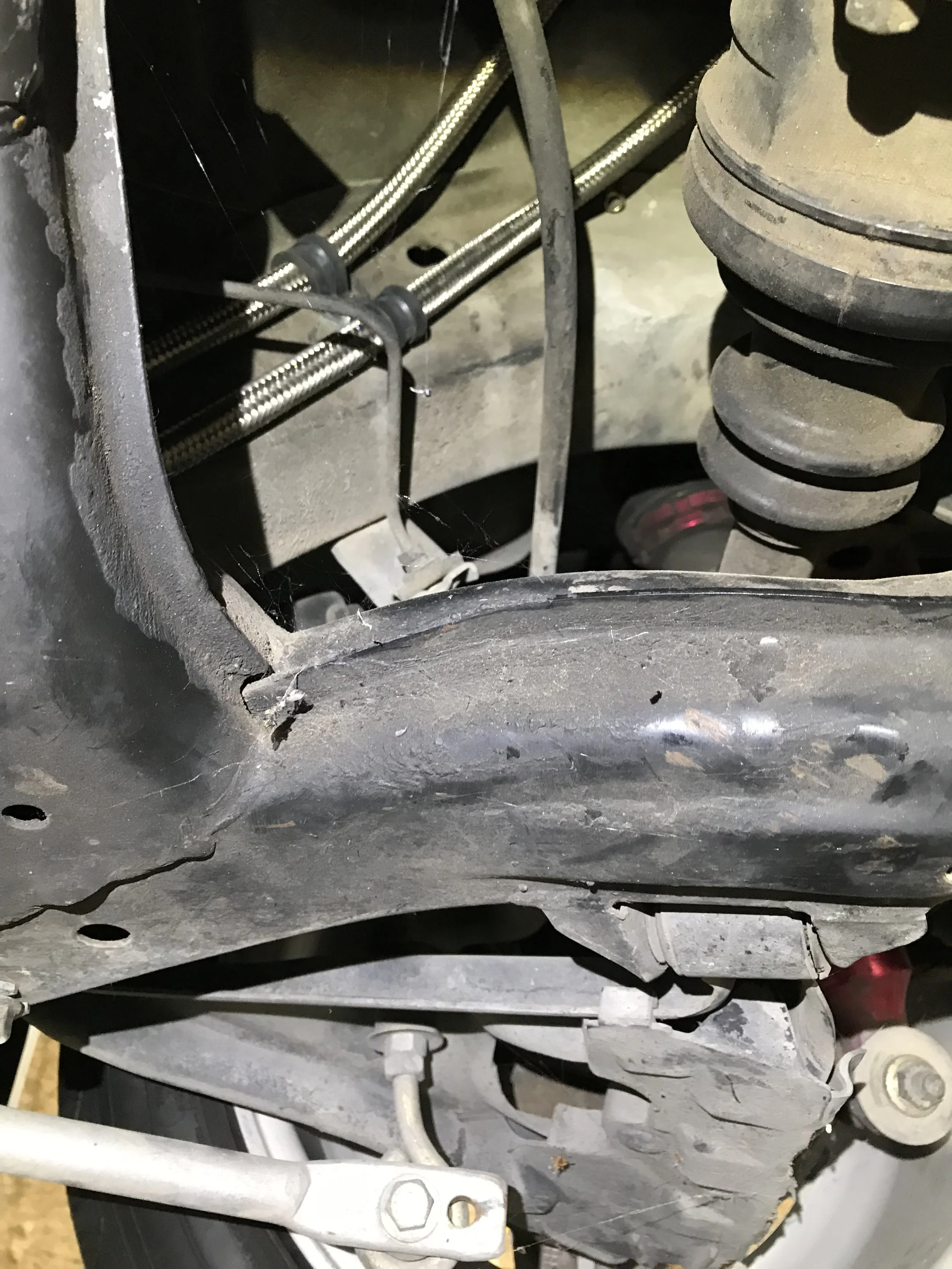

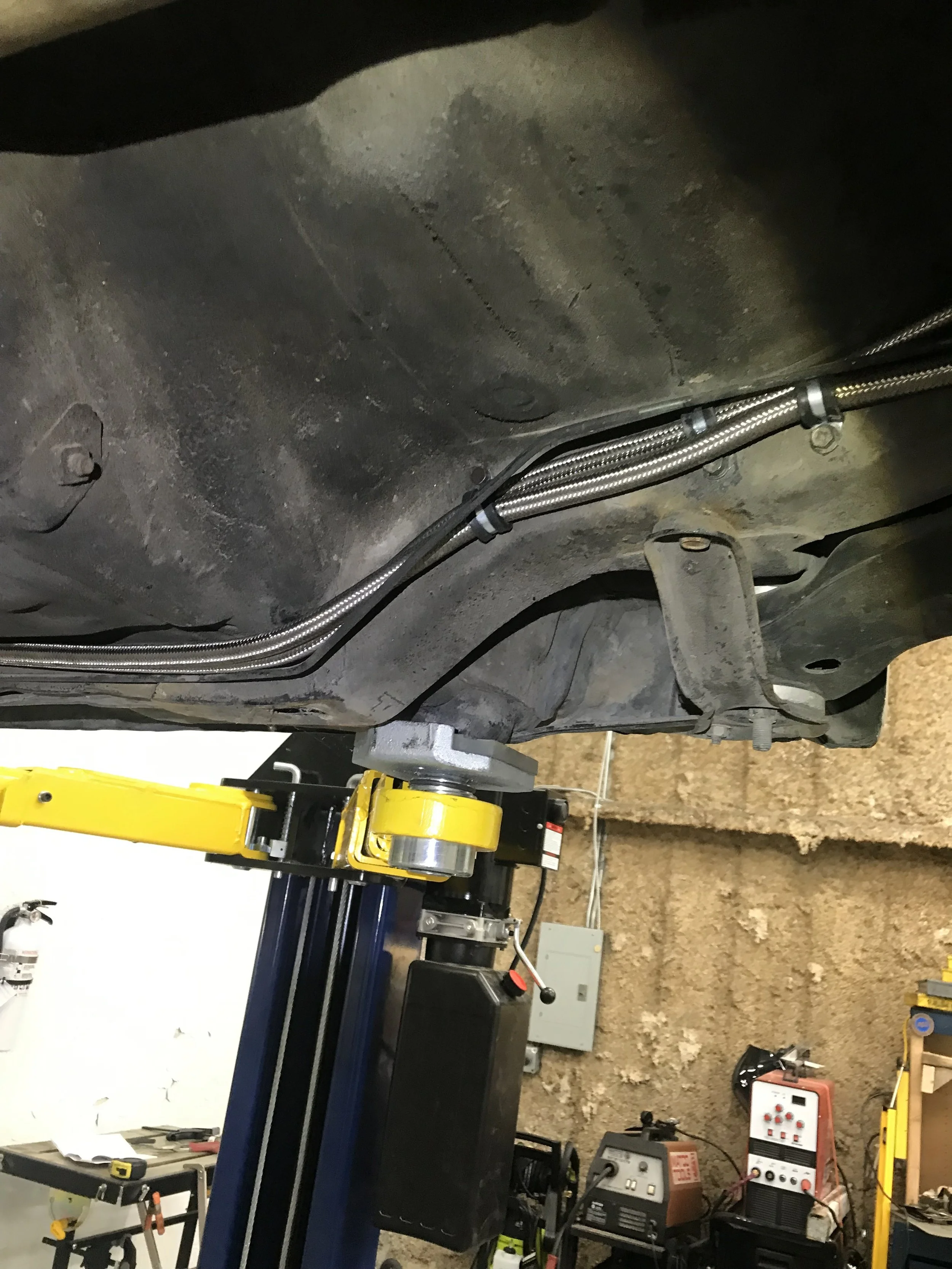

  • -6an Stainless Steel Braided Fuel System

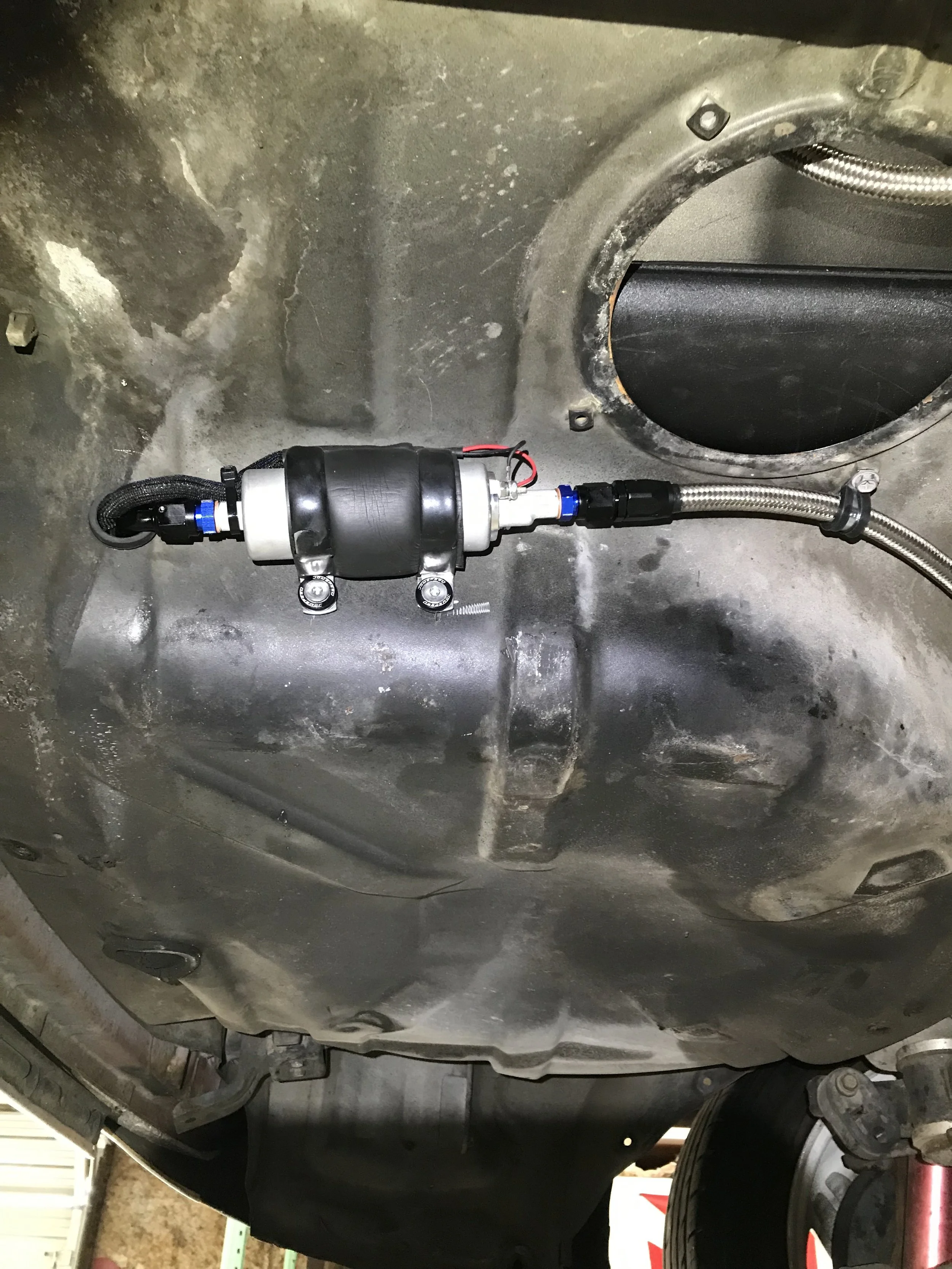

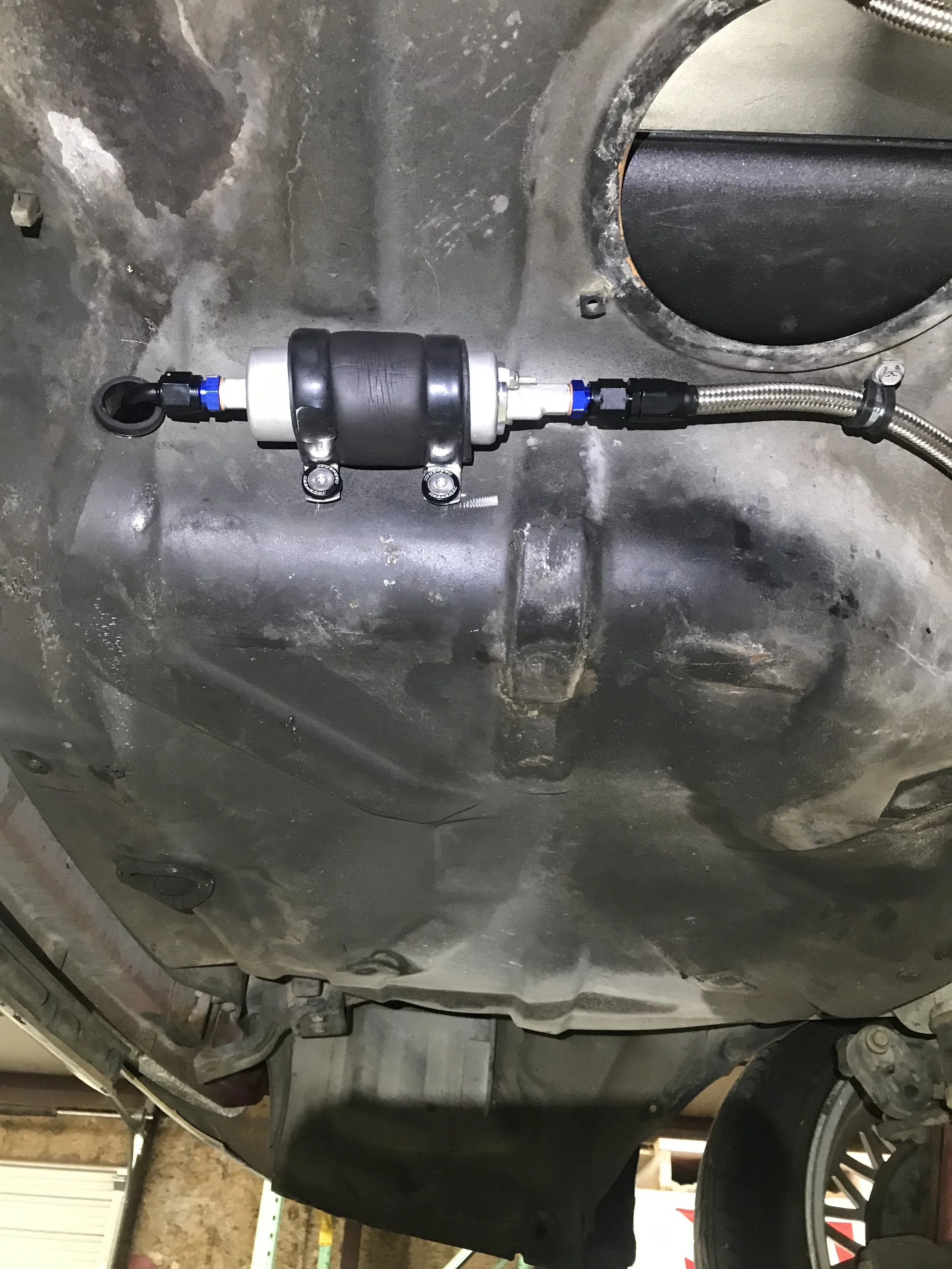

  • Walbro 255LPH External Fuel Pump

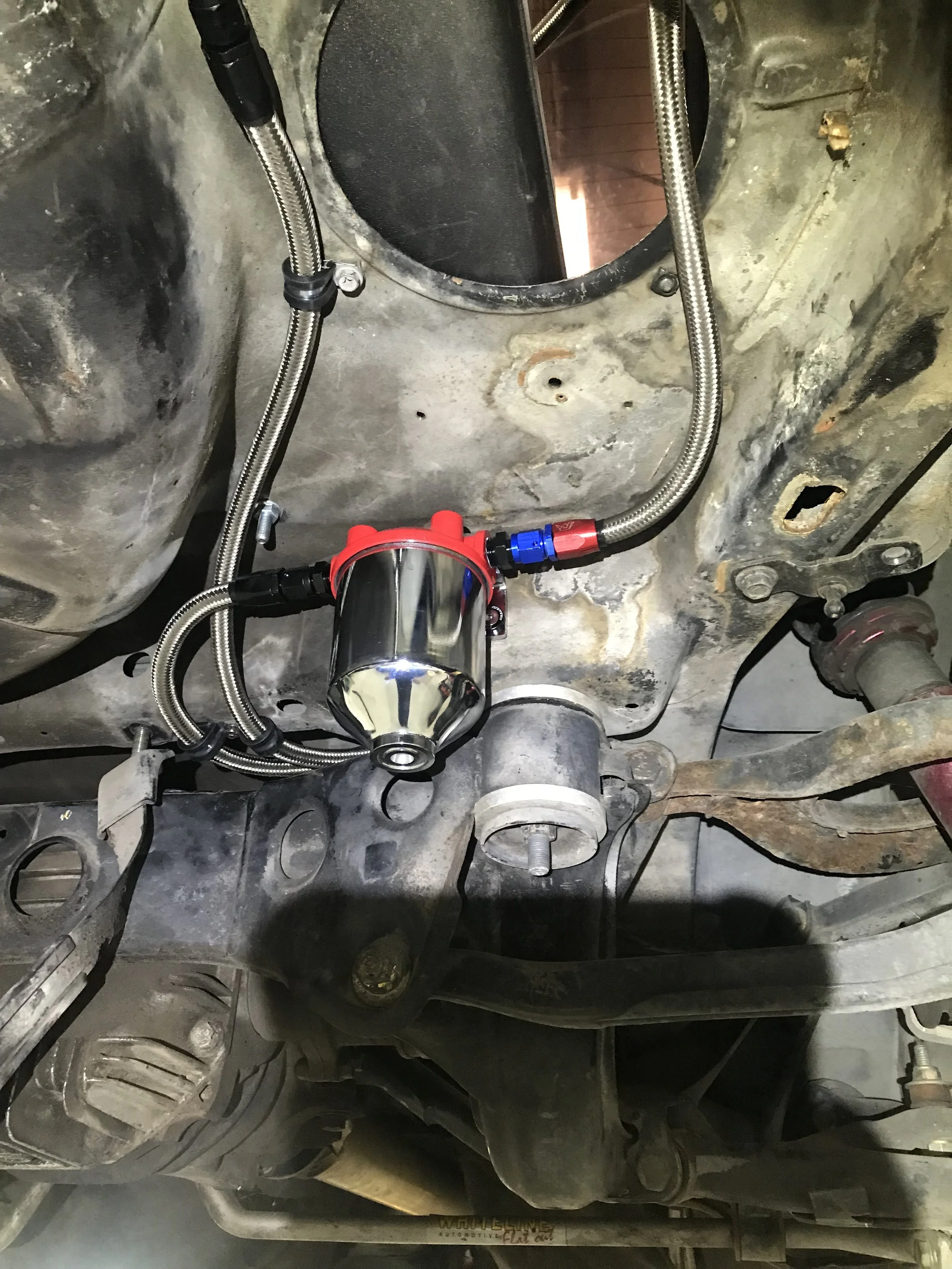

  • JEGS Remote Fuel Filter

  • Cometic Turbo Header Gasket

  • Tomei Stainless Steel Turbo Header

  • Apexi T25 Water-cooled Turbocharger

  • Blitz Super Sound Blow Off Valve

  • G.R.W. Custom Charge Piping

  • Front Mount Intercooler Kit

  • Apexi 3” Turbo-back Exhaust

  • Billet Aluminum Throttle Cable Pulley

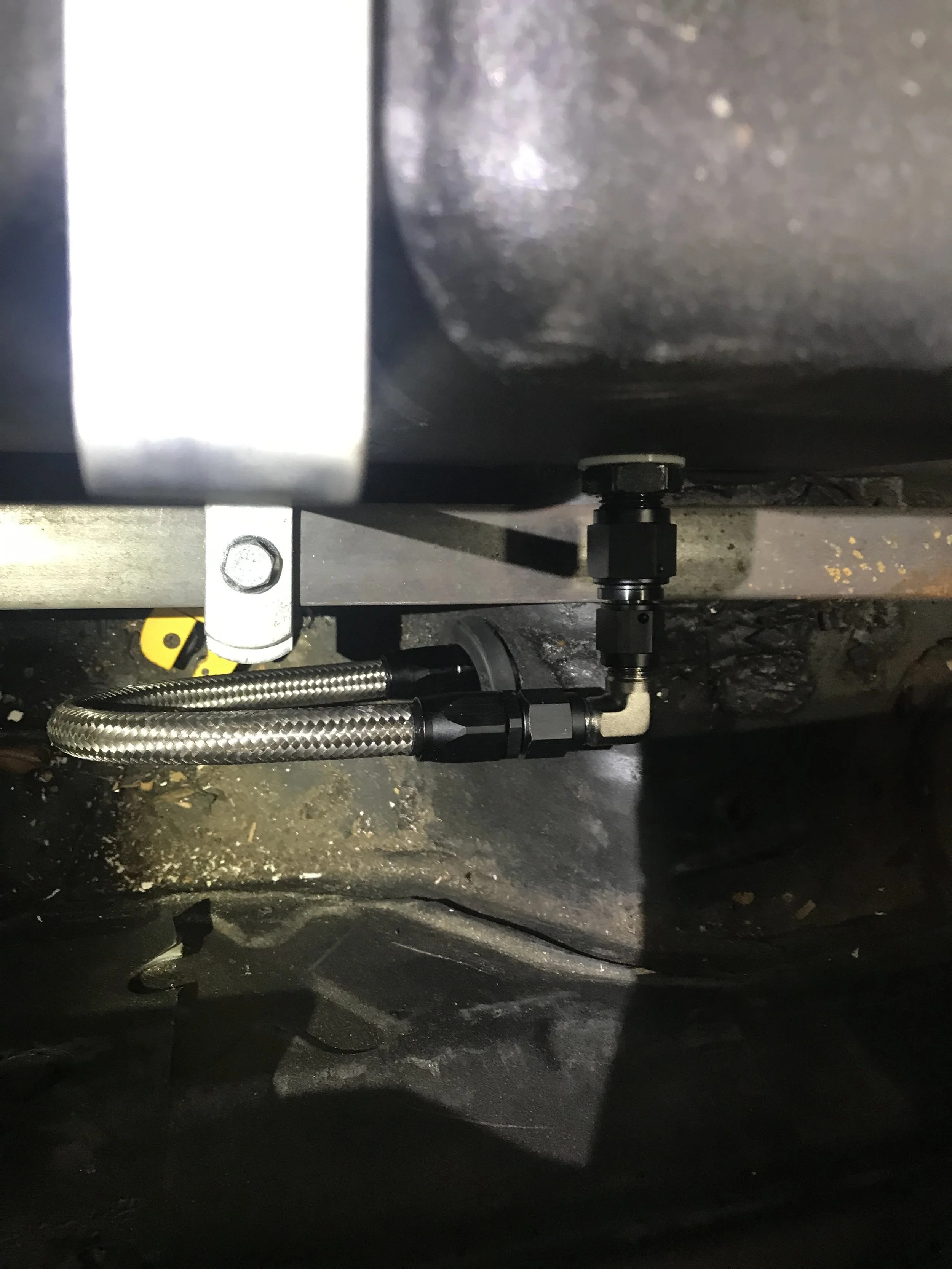

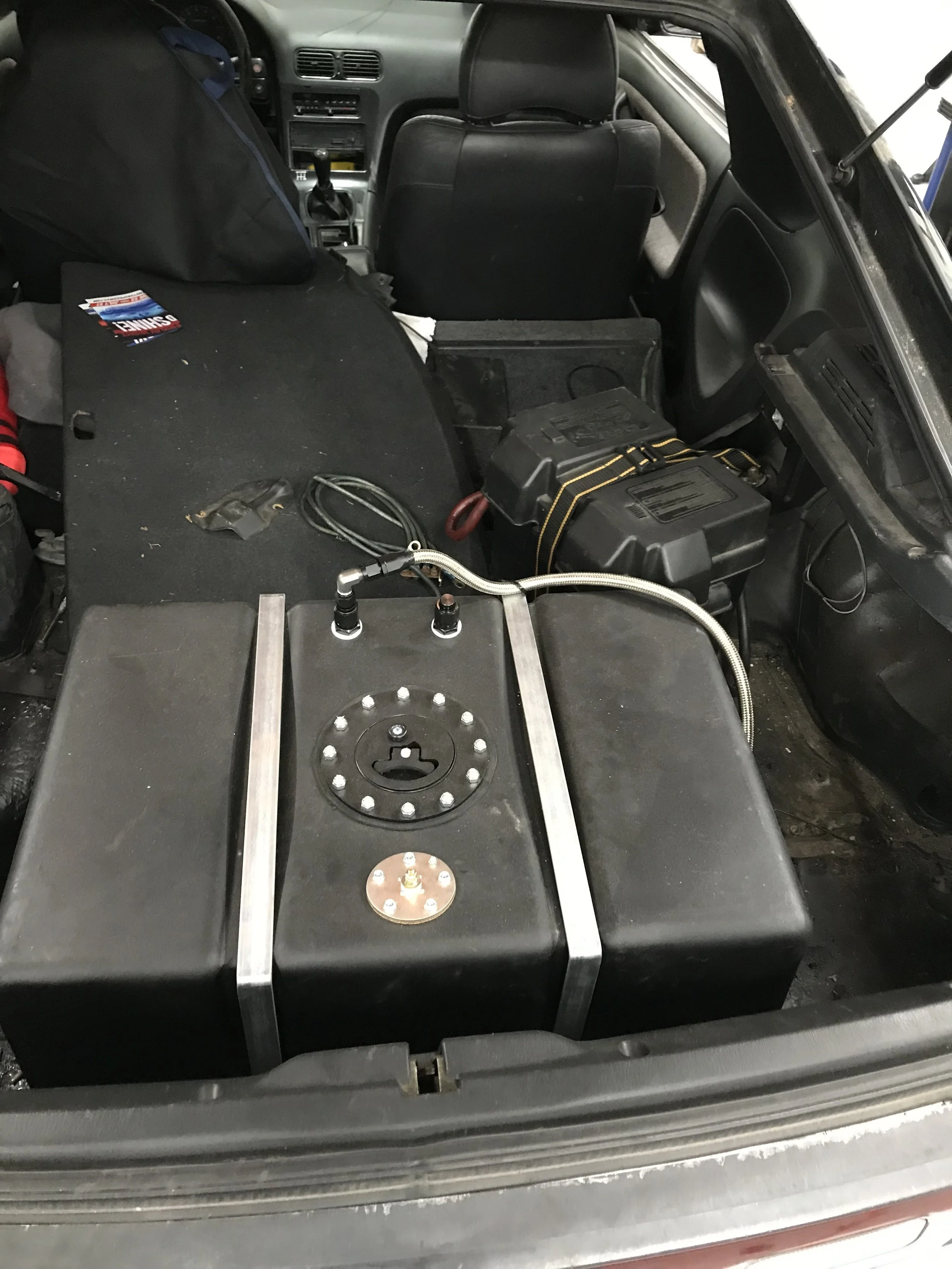

  • JEGS 16 Gallon Fuel Cell

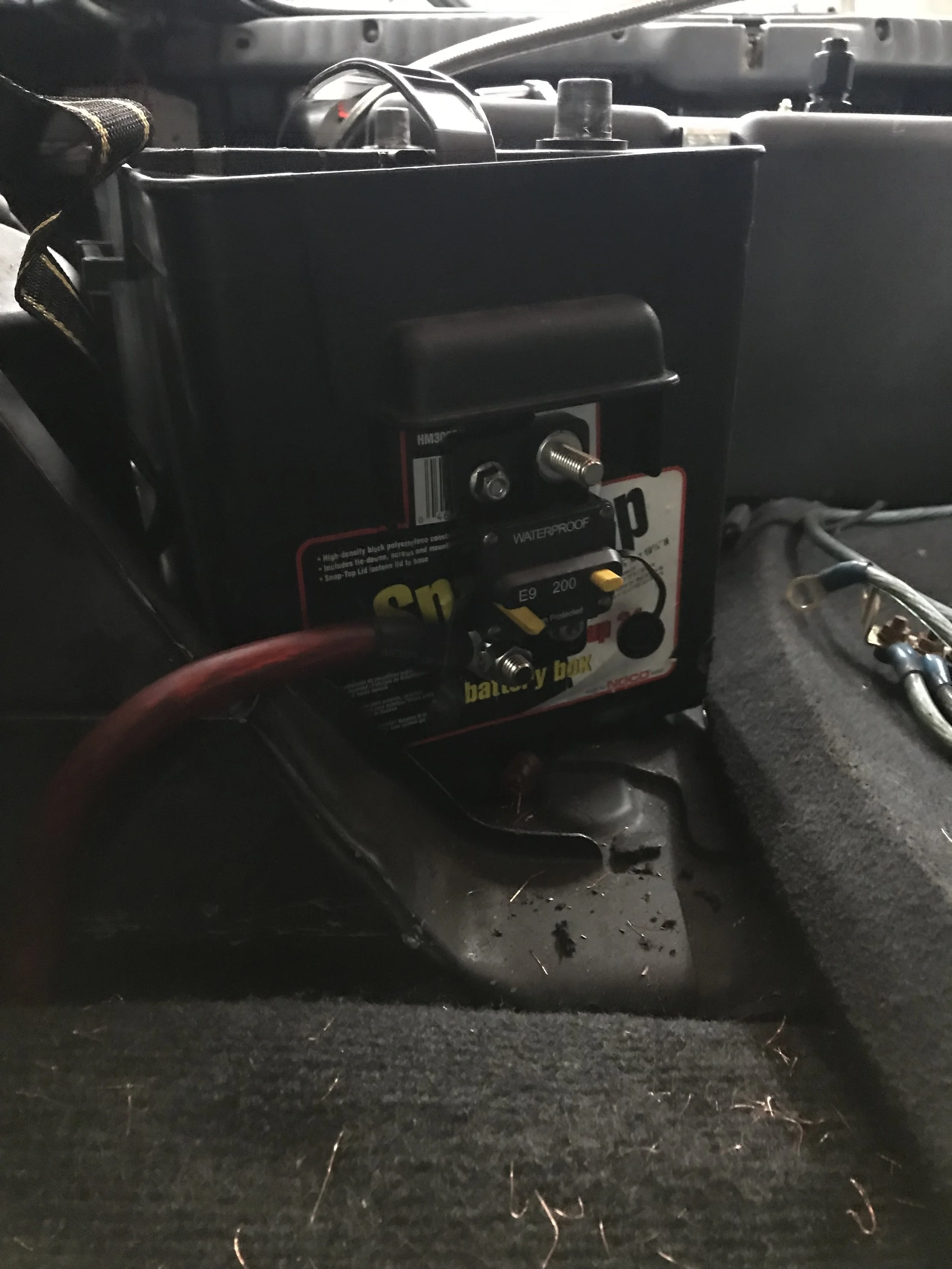

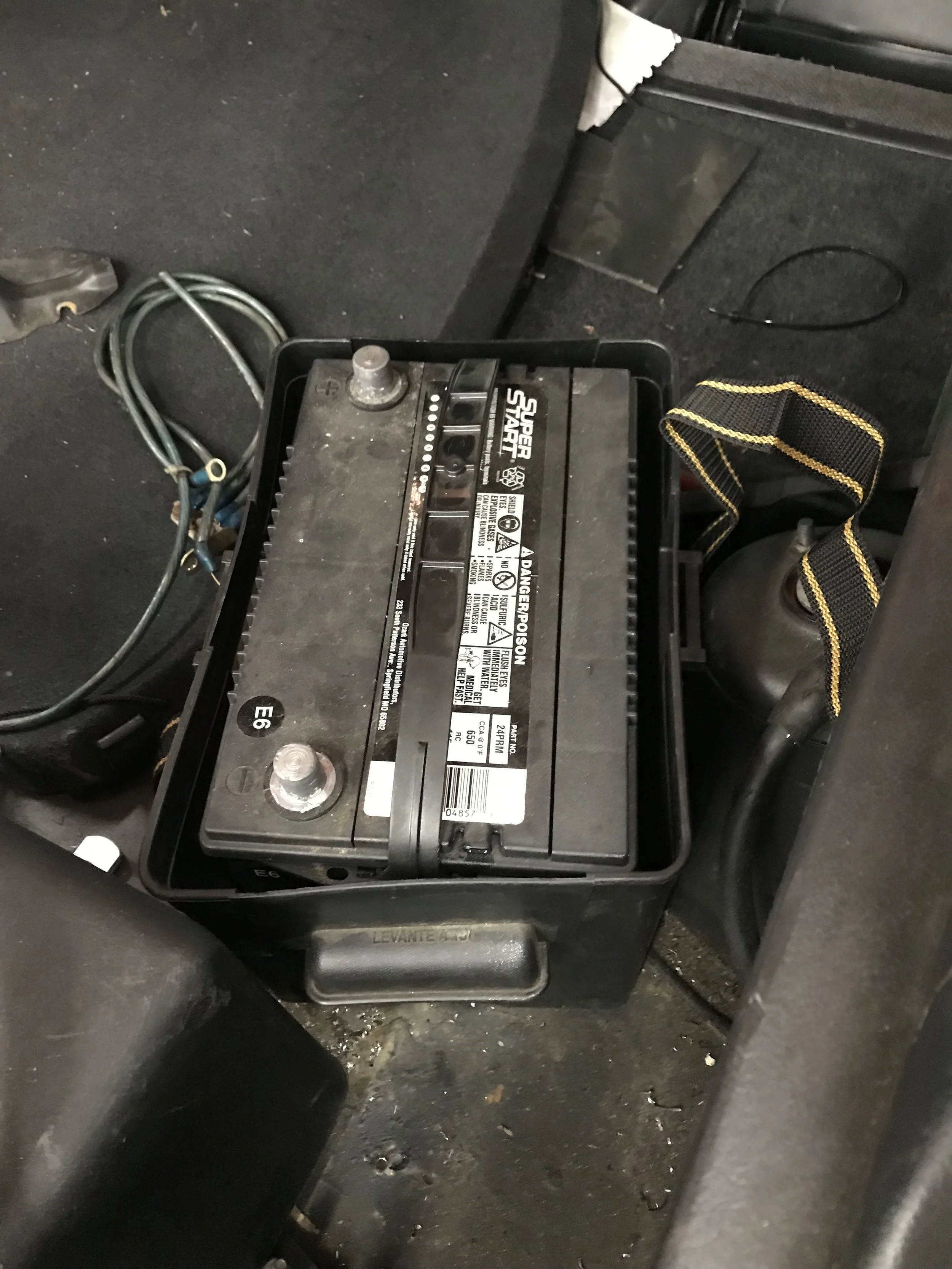

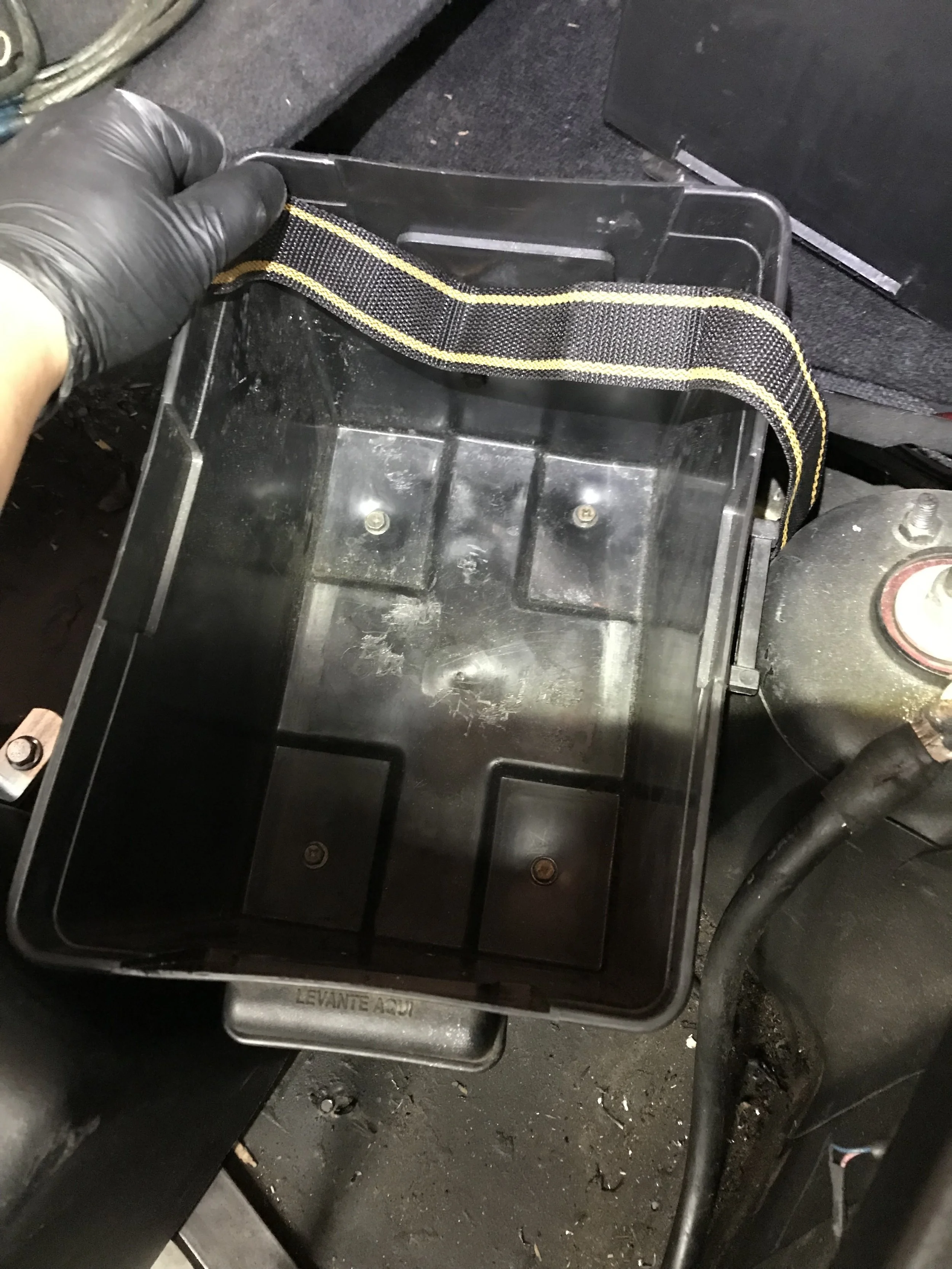

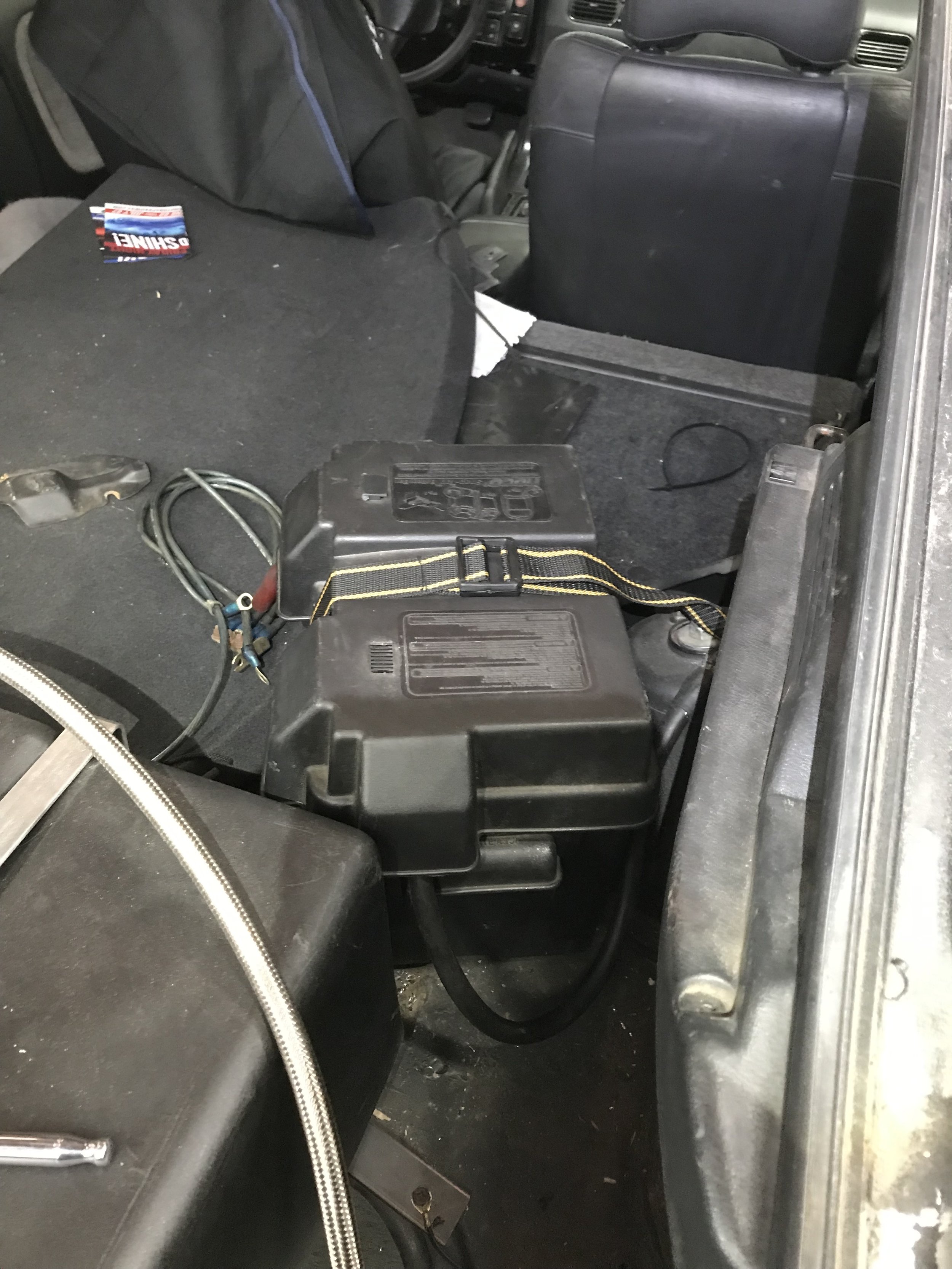

  • Remote Battery Mounting Enclosure

  • Stripped Rear Seats and Hatch Interior


  • Blitz Adjustable Coilovers

  • Adjustable Tension Control Rods

  • Solid Rear Sway Bar Bushings

  • Suspension Techniques Front/Rear Sway Bars

  • ESM 009 16x9 Front/16x9.5 Rear Wheels
